– Economy right angle gearbox

WPLE

Frame size

Go to Tec Data Finder

Use our Tec Data Finder (TDF) to configure your gearbox and request a quote if necessary

rotation

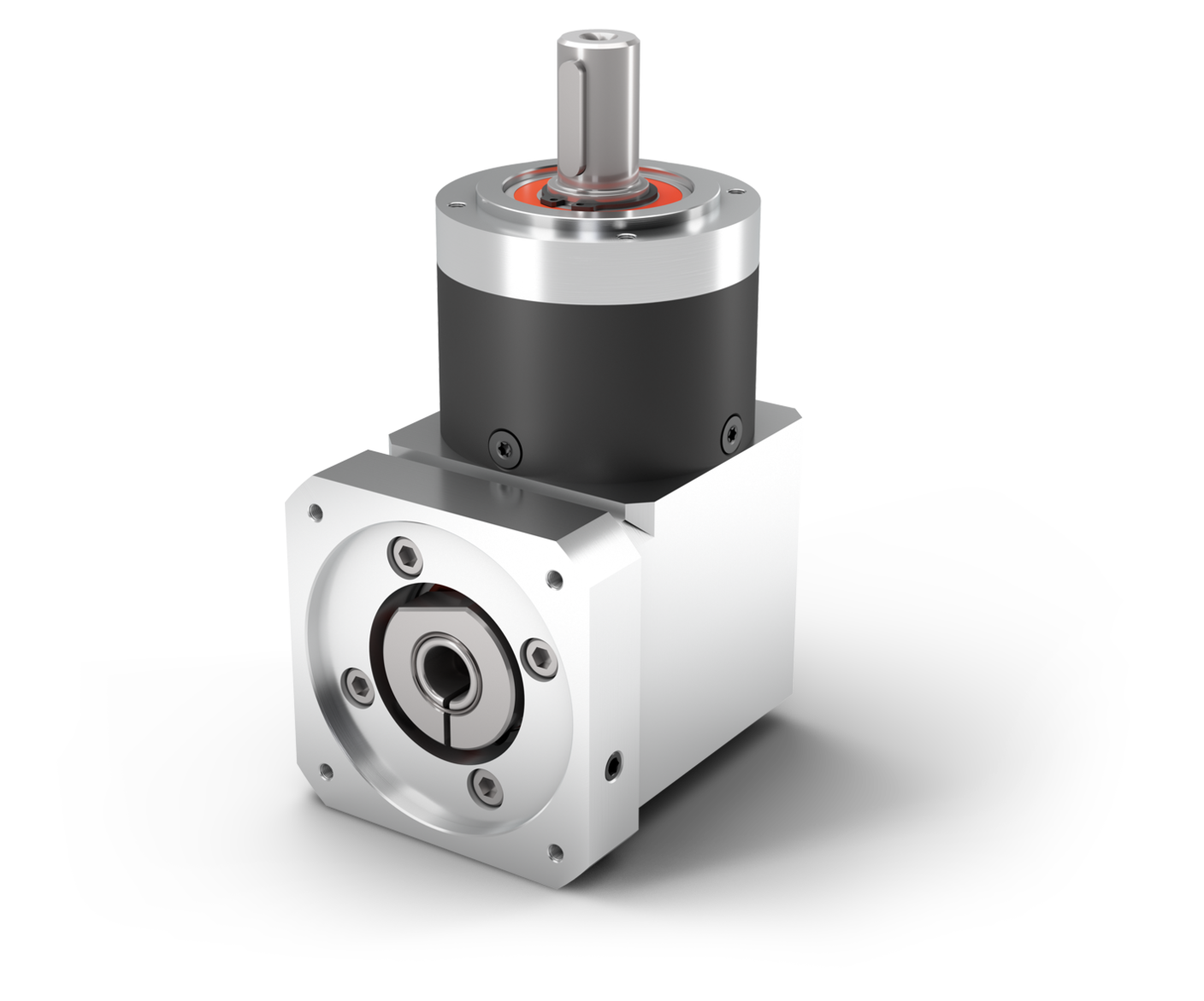

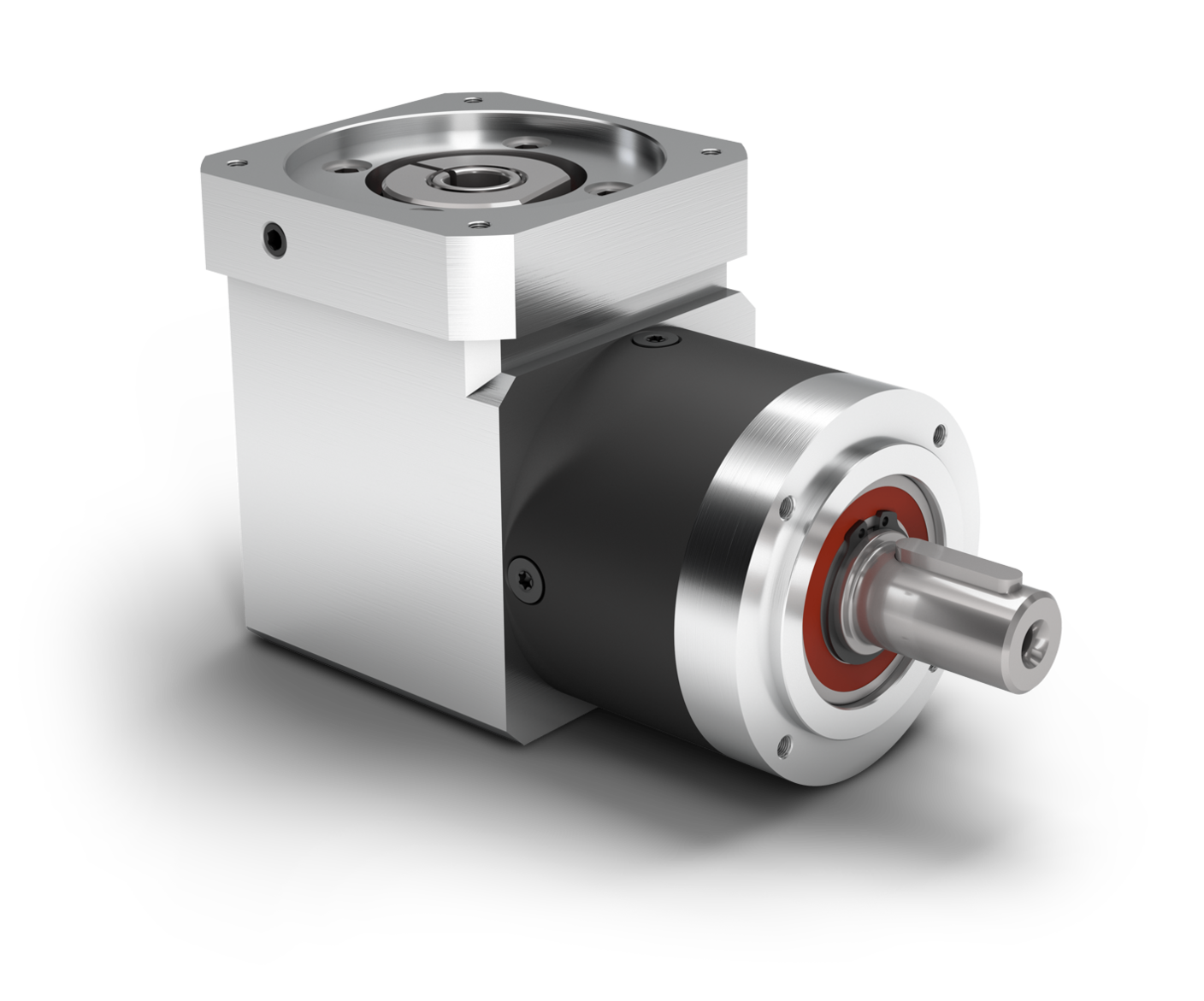

The WPLE consistently continues the advantages of the Economy series. With its compact but powerful design, it is perfectly suited for dynamic multi-axis systems. Our right-angle gearbox is lubricated for life, easy to mount and offers an unmatched price/performance ratio.

Features

  • Economy Line
  • Right angle gearbox

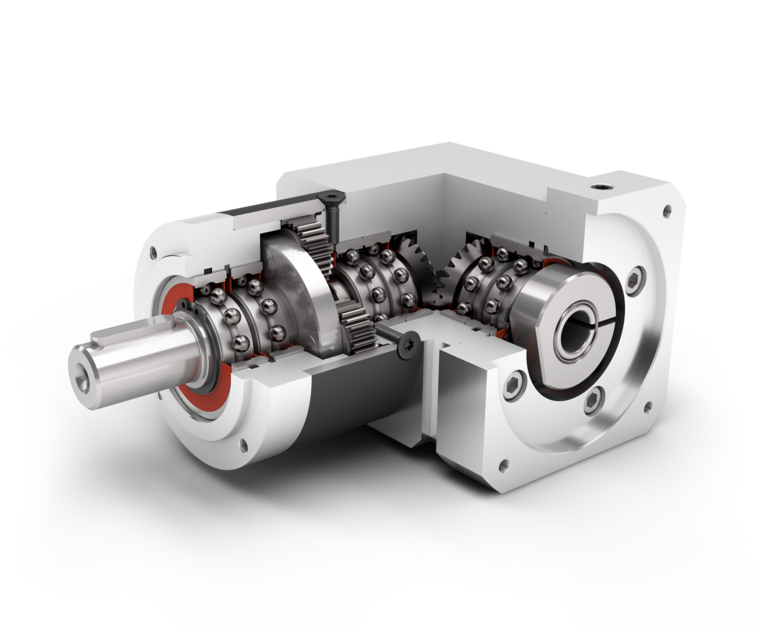

  • Spur gear
  • Bevel gear right angle stage
  • Low-friction deep groove ball bearings
  • Round type output flange
  • High ratio variety i=3 up to i=512
  • Equidirectional rotation
  • Planet carrier in disc design

Further Information

WPLE 040 WPLE 060 WPLE 080 WPLE 120 Stage
Ratios 3, 4, 5, 7, 8, 10 3, 4, 5, 7, 8, 10 1
9, 12, 15, 16, 20, 25, 32, 40, 64 9, 12, 15, 16, 20, 25, 32, 40, 64 2
60, 80, 100, 120, 160, 200, 256, 320, 512 60, 80, 100, 120, 160, 200, 256, 320, 512 3
Efficiency at full load η % % 88 - 95 88 - 95
Min. operating temperature / Max. operating temperature Tmin / Tmax °C °F -25 / 90 -13 / 194
Protection class IP54 IP54
Standard backlash jt arcmin arcmin <21 - <28 <21 - <28 <16 - <21 <16 - <21 <13 - <17 <13 - <17 <11 - <15 <11 - <15
Torsional stiffness cg Nm /arcmin lbf.in/arcmin 0.5 - 1.0 4 - 8 1.5 - 2.5 13 - 22 4.0 - 9.8 35 - 87 9.9 - 20.5 88 - 181
Gearbox weight mG kg lbm 0.6 - 0.7 1.2 - 1.6 1.6 - 2.0 3.5 - 4.4 3.7 - 4.7 8.0 - 10.3 9.6 - 13.3 21.2 - 29.4
Running noise Qg dB(A) dB(A) 68 68 70 70 73 73 75 75
WPLE 040 WPLE 060 WPLE 080 WPLE 120
Radial force for 20,000 h / Radial force for 30,000 h Fr 20.000 h / Fr 30.000 h N lbf 160 - 200 36 - 45 340 - 400 76 - 90 650 - 750 146 - 169 1500 - 1750 337 - 393
Axial force for 20,000 h / Axial force for 30,000 h Fa 20.000 h / Fa 30.000 h N lbf 160 - 200 36 - 45 450 - 500 101 - 112 900 - 1000 202 - 225 2100 - 2500 472 - 562
Tilting moment for 20,000 h MK 20.000 h Nm lbf.in 6 49 14 126 31 273 101 890
WPLE 040 WPLE 060 WPLE 080 WPLE 120
Mass moment of inertia J kgcm2 lbf.in.s210-4 0.032 - 0.049 0.283 - 0.434 0.215 - 0.351 1.903 - 3.107 0.862 - 1.226 7.629 - 10.851 2.645 - 3.670 23.410 - 32.482
WPLE 040 WPLE 060 WPLE 080 WPLE 120 Stage
Nominal output torque T2N Nm lbf.in 5 - 9 40 - 75 14 - 25 124 - 221 38 - 67 336 - 593 80 - 135 708 - 1195 1
8 - 20 66 - 177 18 - 44 159 - 389 50 - 130 443 - 1151 120 - 260 1062 - 2301 2
8 - 20 66 - 177 18 - 44 159 - 389 50 - 120 443 - 1062 120 - 260 1062 - 2301 3
Max. output torque T2max Nm lbf.in 7 - 14 62 - 119 22 - 40 195 - 354 61 - 107 540 - 947 128 - 216 1133 - 1912 1
12 - 32 106 - 283 29 - 70 257 - 620 80 - 208 708 - 1841 192 - 416 1699 - 3682 2
12 - 32 106 - 283 29 - 70 257 - 620 80 - 192 708 - 1699 192 - 416 1699 - 3682 3
Emergency stop torque T2Stop Nm lbf.in 23 - 35 199 - 310 66 - 86 584 - 761 170 - 240 1505 - 2124 340 - 500 3009 - 4425 1
27 - 40 239 - 354 80 - 88 708 - 779 190 - 260 1682 - 2301 380 - 520 3363 - 4602 2
27 - 40 239 - 354 80 - 88 708 - 779 190 - 240 1682 - 2124 380 - 520 3363 - 4602 3
WPLE 040 WPLE 060 WPLE 080 WPLE 120
Average thermal input speed at T2N and S1 n1N min-1 rpm 5000 5000 3550 - 4500 3550 - 4500 2100 - 4000 2100 - 4000 2000 - 3500 2000 - 3500
Max. mechanical input speed n1Limit min-1 rpm 18000 18000 13000 13000 7000 7000 6500 6500

Wide diversity of output shafts

  • Output shaft with feather key
  • Smooth output shaft

Lubrication

  • Standard lubrication
  • Food grade lubrication
  • Low temperature lubrication

Input

  • Motor adaptation
  • No motor adaptation – universal flange
WPLE 040 WPLE 060 WPLE 080 WPLE 120 Stage
Shaft diameter output D3 mm in 10 0.394 14 0.551 20 0.787 25 0.984
Centering diameter output D5 mm in 26 1.024 40 1.575 60 2.362 80 3.150
Housing diameter D6 mm in 40 1.575 60 2.362 80 3.150 115 4.528
Total length L1 mm in 110.0 4.331 147.0 5.787 184.0 7.244 249.5 9.823 1
123.0 4.843 159.5 6.280 201.5 7.933 277.0 10.906 2
135.5 5.335 172.0 6.772 219.0 8.622 304.5 11.988 3
Shaft length output L3 mm in 26 1.024 35 1.378 40 1.575 55 2.165

Downloads

Product Catalog: WPLE
Download
Operating Manual
Download
Mounting Instructions: WPLE
Download



Configure your WPLE gearbox here

We have developed the Tec Data Finder (TDF) so that you can configure a WPLE planetary gearbox for your needs with just a few clicks. The TDF will provide you with all relevant data, technical information and CAD models. Matched to your motor's flange, of course.
