Planetary Gear Reducer

How Planetary Gear Reducers Work

A planetary gear reducer operates through four essential components working together:

1. Sun Gear
Central gear on the input shaft that drives the system, usually a standard component in many gear systems.

2. Planet Gear
Multiple gears orbiting the sun gear, while meshing with the sun and ring gears.

3. Ring Gear
Outer gear with internal teeth that typically remains stationary.

4. Planet Carrier
Holds the planet gears and connects to the output shaft.

The configuration of a planetary gear reducer creates a power advantage by moving energy from the sun gear through the planet gears to the carrier, slowing speed while increasing torque ratio, all in a space-saving design. Planetary gear reducers are the most common type of coaxial gearbox, where input and output shafts align on the same axis.

LEARN ABOUT COAXIAL GEARBOX DESIGN

Understanding Planetary Gear Reducers

A planetary gear reducer converts high-speed, low-torque input into low-speed, high-torque output.

This compact gear transmission system:

Distributes load across multiple contact points
Decreases motor speed while increasing torque
Delivers exceptional power in minimal space
Maintains aligned input and output shafts

Industries from automation to transportation rely on planetary gears when performance requirements are high but installation space is limited.

LEARN MORE ABOUT PLANETARY GEARING PRINCIPLES

Planetary Gear Reducer Advantages

Compact Size with Maximum Power

Planetary gear reducers deliver the same torque output while requiring up to 50% less space than conventional systems.

Superior Torque Transmission

With multiple teeth engaged simultaneously, planetary reducers distribute load evenly, enabling them to handle and transfer significantly higher torque levels.

Exceptional Durability

Precision-engineered ball bearings ensure smooth operation with reduced wear, resulting in longer operational life and decreased maintenance requirements.

Stability and High Precision

Higher axial and radial load capacities reduce misalignment risks while dampening vibration. This provides consistent performance in planetary speed reducers.

Versatility

Modular design allows for stacking multiple stages or customizing configurations to meet specific application requirements.

Selecting the Right Planetary Speed Reducer

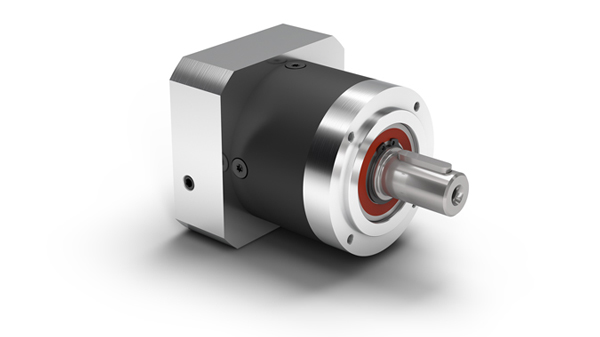

Economy Planetary Reducers

Attractively priced and available in both inline and right-angle configurations. These lightweight but powerful reducers feature low-friction bearings and are designed for demanding production cycles where cost-efficiency is essential.

LEARN MORE

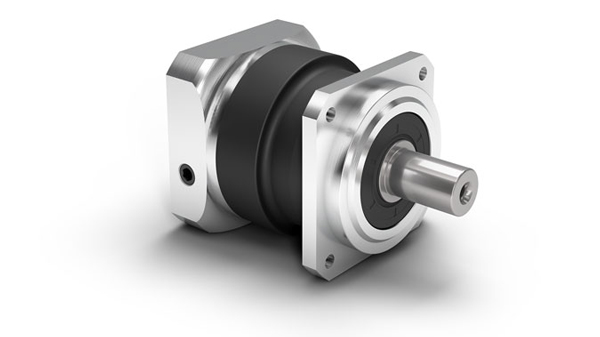

Precision Planetary Gear Reducers

Engineered for applications requiring exceptional accuracy in torsional backlash and rigidity. These high-performance reducers offer superior IP protection ratings, enhanced load capacity, and versatile gearing options.

LEARN MORE

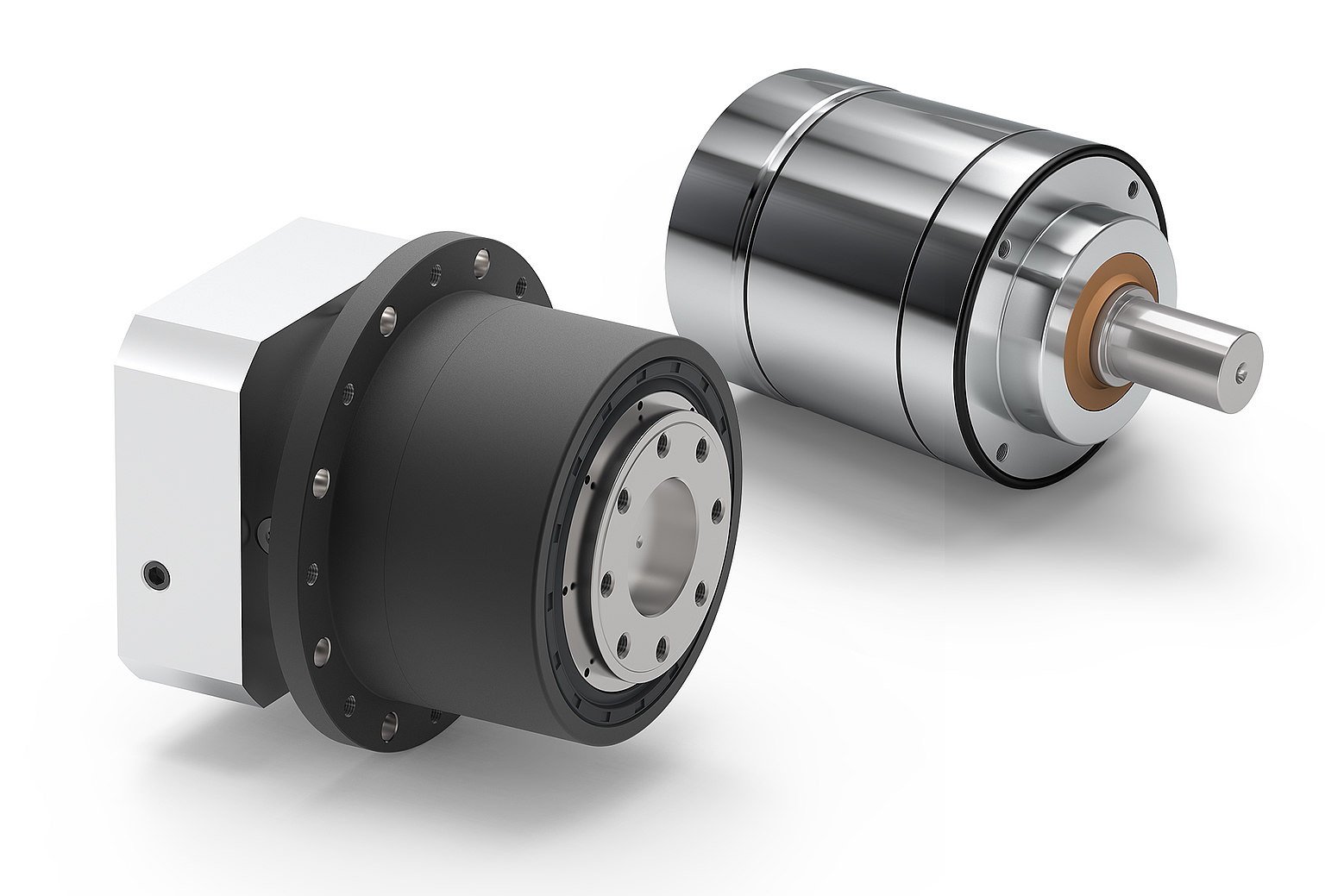

Application-Specific Planetary Speed Reducers

Planetary reducers for specialized environments such as food processing, industrial trucks, or robotics. Neugart also develops, designs, and produces custom planetary gear reducers. Our engineers always find the optimal solution for your application.

LEARN MORE

application-specific planetary gear reducers

Industrial Applications for Planetary Gear Reducers

Planetary gear reducers excel in diverse industries requiring precision and power.

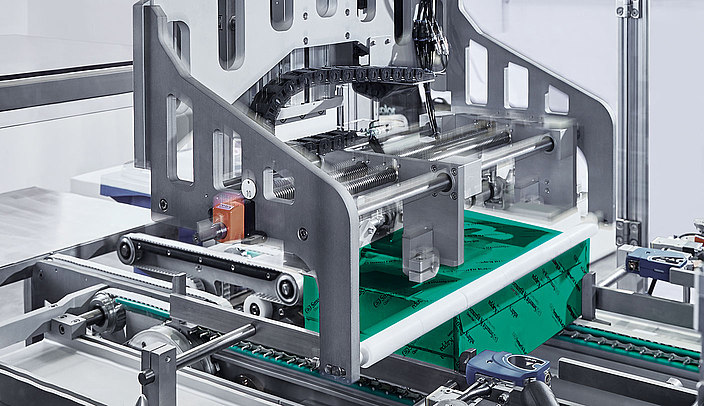

Automation & Robotics
Robot arms, automated assembly lines, and positioning systems.

Food Processing
Specialized corrosion-resistant designs for mixing, conveying, and packaging.

Manufacturing Equipment
CNC spindles, ball screws, indexing systems, and 3D printing machines.

Material Handling
Conveyor systems, rollers, belts, and positioning platforms.

Precision Instruments
Laser equipment, medical devices, and security systems.

Common Concerns When Selecting Planetary Reducers

While planetary gear reducers offer exceptional performance, potential challenges should be considered:

1. Design Complexity

The intricate arrangement of multiple gears requires precision engineering and manufacturing to ensure optimal performance.

2. Maintenance Considerations

Though designed for long life, eventual maintenance may require specialized knowledge due to the complex internal structure.

3. Cost Factors

Initial investment can be higher than simpler reducer types, though this is offset by superior performance and longevity.

Despite these challenges, the compact size and high torque capacity of planetary gear reducers make them the preferred solution for applications where performance cannot be compromised.

Find Your Planetary Gear Reducer Today

Neugart delivers the perfect combination of German engineering precision and American manufacturing efficiency in every planetary gear reducer we produce.

From our affordable Economy Line to our high-performance Precision series and custom application-specific solutions, we provide the compact size, superior torque capacity, and exceptional reliability your operations demand.

With quick delivery times and comprehensive US-based support, your ideal planetary reducer is just a click away.

Find a Planetary Gear Reducer

Configure your gearbox here

We have developed the Tec Data Finder (TDF) so that you can configure a planetary gearbox for your needs with just a few clicks. The TDF will provide you with all relevant data, technical information and CAD models. Matched to your motor's flange, of course.
