– Precision planetary gearbox

PSFN

Frame size

Go to Tec Data Finder

Use our Tec Data Finder (TDF) to configure your gearbox and request a quote if necessary

PSFN small gearbox
PSFN precision gearbox
PSFN gearbox
PSFN Neugart
PFHE gearboxes with mounted pinion PM1 PM2
PSFN web rotation

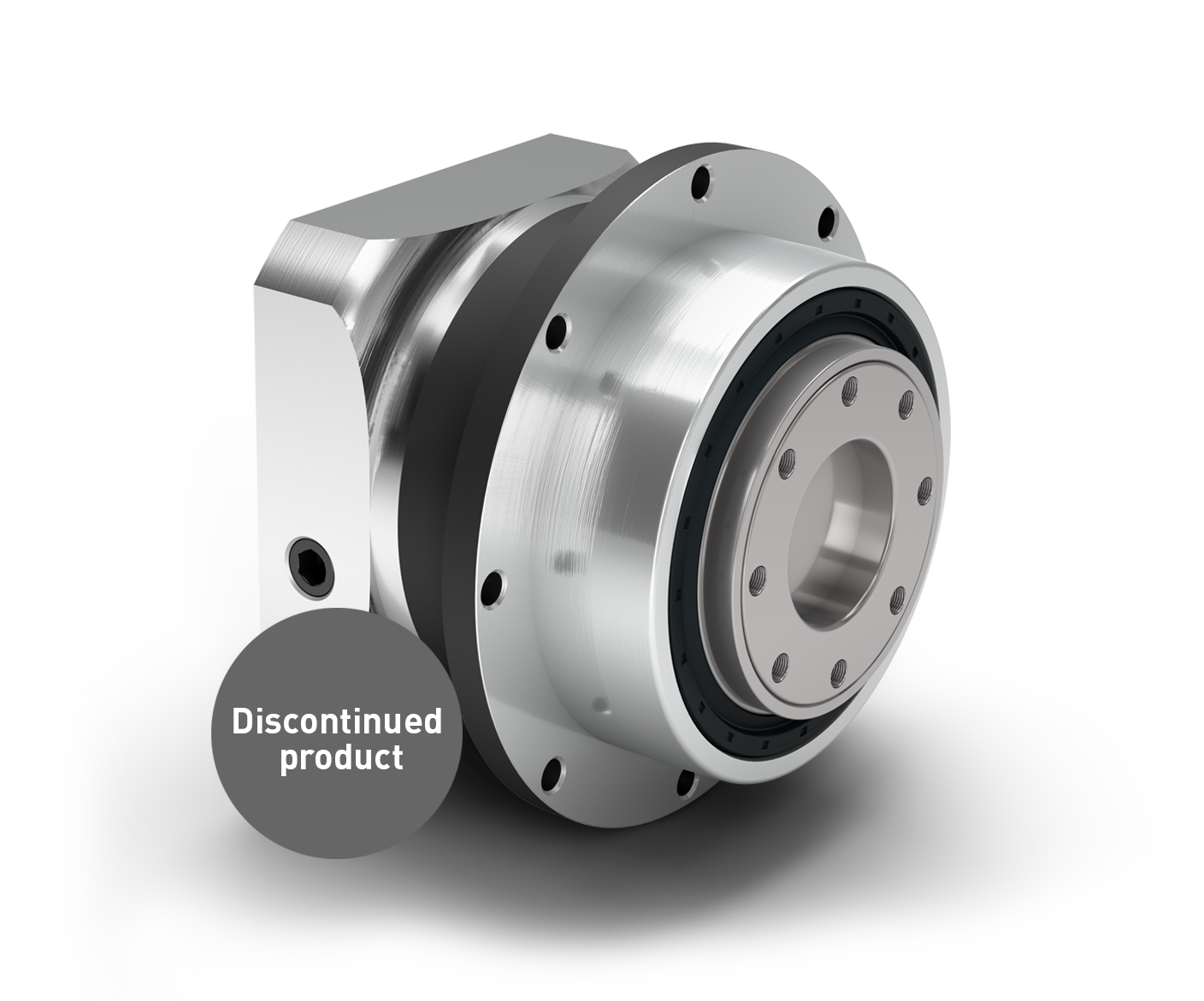

Thanks to its standardized flange interface and a planet carrier in a cage design, our PSFN is extremely torsionally rigid. The specially developed helical gearing reduces vibrations to a minimum. With its high tilting moment, you can demand a lot from this precision planetary gearbox.

Features

  • Precision Line
  • Coaxial gearbox
  • Helical gear
  • Preloaded angular contact roller bearings
  • Radial shaft seal
  • Extra large round type output flange
  • Very short gearbox
  • Equidirectional rotation
  • Planet carrier in cage design

Further Information

PSFN 055 PSFN 064 PSFN 090 PSFN 110 PSFN 140 PSFN 200 Stage
Ratios 4, 5, 7, 8, 10 4, 5, 7, 8, 10 4, 5, 7, 10 4, 5, 7, 10 1
16, 20, 25, 35, 40, 50, 70, 100 16, 20, 25, 35, 40, 50, 70, 100 2
Efficiency η % % 96 - 97 96 - 97
Min. operating temperature / Max. operating temperature Tmin / Tmax °C °F -25 / 90 -13 / 194
Protection class IP65 IP65
Standard backlash φ arcmin arcmin <6 - <8 <6 - <8 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5
Reduced backlash φ arcmin arcmin <4 - <6 <4 - <6 <2 <2 <1 <1 <1 <1 <1 <1 <1 <1
Torsional stiffness C2t Nm /arcmin lbf.in/arcmin 2.4 - 4.9 21 - 43 8.2 - 13.3 73 - 118 21.0 - 32.0 186 - 283 64.0 - 83.0 566 - 735 127.0 - 218.0 1124 - 1929 365.0 - 668.0 3231 - 5912
Gearbox weight m kg lbm 0.7 - 1.1 1.6 - 2.4 1.6 - 2.3 3.5 - 5.0 3.5 - 3.8 7.7 - 8.4 5.2 - 6.9 11.4 - 15.2 11.5 - 13.5 25.3 - 29.8 28.1 - 33.6 62.0 - 74.2
Running noise LpA dB(A) dB(A) 56 56 57 57 58 58 63 63 66 66 68 68
PSFN 055 PSFN 064 PSFN 090 PSFN 110 PSFN 140 PSFN 200
Maximum radial force Fr max N lbf 1450 326 2150 483 3950 888 4900 1102 12000 2698 23000 5171
Maximum axial force Fa max N lbf 2350 528 2850 641 5450 1225 6450 1450 7500 1686 12000 2698
Maximum tilting moment MK max Nm lbf.in 75 667 132 1170 326 2888 475 4207 1030 9113 2445 21639
PSFN 055 PSFN 064 PSFN 090 PSFN 110 PSFN 140 PSFN 200
Mass moment of inertia input J1 kgcm2 lbf.in.s210-4 0.095 - 0.117 0.841 - 1.036 0.146 - 0.210 1.292 - 1.859 0.147 - 0.719 1.301 - 6.364 0.435 - 2.029 3.850 - 17.958 1.144 - 9.670 10.125 - 85.587 6.434 - 40.642 56.946 - 359.712
Average idle torque T0 Nm lbf.in 0.15 - 0.35 1 - 3 0.15 - 0.65 1 - 6 0.25 - 1.65 2 - 15 0.45 - 3.80 4 - 34 0.75 - 9.10 7 - 81 1.80 - 26.90 16 - 238
PSFN 055 PSFN 064 PSFN 090 PSFN 110 PSFN 140 PSFN 200 Stage
Cyclic torque T2Z Nm lbf.in 14 - 18 119 - 159 28 - 40 248 - 354 59 - 80 522 - 708 140 - 180 1239 - 1593 270 - 470 2390 - 4160 730 - 950 6461 - 8408 1
14 - 18 119 - 159 28 - 40 248 - 354 59 - 80 522 - 708 140 - 180 1239 - 1593 270 - 470 2390 - 4160 730 - 950 6461 - 8408 2
Maximum torque T2max Nm lbf.in 21 - 28 186 - 248 44 - 64 389 - 566 94 - 128 832 - 1133 220 - 285 1947 - 2522 435 - 700 3850 - 6196 1050 - 1520 9293 - 13453 1
21 - 28 186 - 248 44 - 64 389 - 566 94 - 128 832 - 1133 220 - 285 1947 - 2522 435 - 750 3850 - 6638 1050 - 1520 9293 - 13453 2
Continuous torque T2D Nm lbf.in 11 - 15 97 - 133 23 - 34 204 - 301 50 - 68 443 - 602 119 - 153 1053 - 1354 255 - 395 2257 - 3496 630 - 800 5576 - 7081 1
11 - 15 97 - 133 23 - 34 204 - 301 50 - 68 443 - 602 119 - 153 1053 - 1354 255 - 395 2257 - 3496 630 - 800 5576 - 7081 2
Emergency stop torque T2Stop Nm lbf.in 24 - 55 212 - 487 52 - 130 460 - 1151 121 - 280 1071 - 2478 295 - 650 2611 - 5753 600 - 1650 5310 - 14604 1700 - 3200 15046 - 28322 1
24 - 55 212 - 487 52 - 150 460 - 1328 121 - 300 1071 - 2655 295 - 650 2611 - 5753 600 - 1650 5310 - 14604 1700 - 3200 15046 - 28322 2
PSFN 055 PSFN 064 PSFN 090 PSFN 110 PSFN 140 PSFN 200 Stage
Continuous input speed n1D min-1 rpm 3550 - 5000 3550 - 5000 4200 - 4500 4200 - 4500 2800 - 4000 2800 - 4000 2000 - 3500 2000 - 3500 680 - 1950 680 - 1950 560 - 1450 560 - 1450 1
5000 5000 4500 4500 3350 - 4000 3350 - 4000 1650 - 3500 1650 - 3500 1300 - 3000 1300 - 3000 2
Max. mechanical input speed n1max min-1 rpm 10000 10000 10000 10000 10000 10000 8500 - 10000 8500 - 10000 6500 - 8500 6500 - 8500 6000 - 6500 6000 - 6500

Wide diversity of output shafts

  • Flange output shaft (ISO 9409-1)
  • Output shaft with mounted pinion

Backlash

  • Standard backlash
  • Reduced backlash

Lubrication

  • Standard lubrication
  • Food grade lubrication
  • Low temperature lubrication

Surface

  • Standard surface
  • Painted surface

Optimized clamping systems

  • Inertia-optimized clamping system
  • Clamping system for motor shaft diameter

Input

  • Motor adaptation

Mounted pinion

  • PM1 - Pinion with helical teeth
  • PM2 - Pinion with helical teeth
  • PM2 - Pinion with straight teeth
PSFN 055 PSFN 064 PSFN 090 PSFN 110 PSFN 140 PSFN 200 Stage
Pitch circle diameter output shaft D11 mm in 25 0.984 31.5 1.240 50 1.969 63 2.480 80 3.150 125 4.921
Centering diameter output flange D13 mm in 55 2.165 64 2.520 90 3.543 110 4.331 140 5.512 200 7.874
Flange diameter output D14 mm in 72 2.835 86 3.386 118 4.646 145 5.709 179 7.047 247 9.724
Total length L1 mm in 66.0 2.598 71.0 2.795 89.5 3.524 108.0 4.252 142.0 5.591 172.0 6.772 1
89.5 3.524 99.5 3.917 112.0 4.409 130.0 5.118 173.0 6.811 217.0 8.543 2
Output flange length L13 mm in 19.0 0.748 19.5 0.768 30.0 1.181 29.0 1.142 38.0 1.496 50.0 1.969

Mounted pinion

The Neugart pinion is pre-mounted on the gearbox and secured with screws. This means that the compact unit consisting of the gearbox and the pinion can be quickly installed in the application, and less installation work is required.

MOUNTED PINION
pinion range Neugart

Downloads

Product Catalog: PSFN
Download
Operating Manual
Download
Mounting Instructions: PSFN
Download



Configure your PSFN gearbox here

We have developed the Tec Data Finder (TDF) so that you can configure a PSFN planetary gearbox for your needs with just a few clicks. The TDF will provide you with all relevant data, technical information and CAD models. Matched to your motor's flange, of course.

CONFIGURE GEARBOX
