Precision planetary gearbox

PSBN

Frame size

Go to Tec Data Finder

Use our Tec Data Finder (TDF) to configure your gearbox and request a quote if necessary

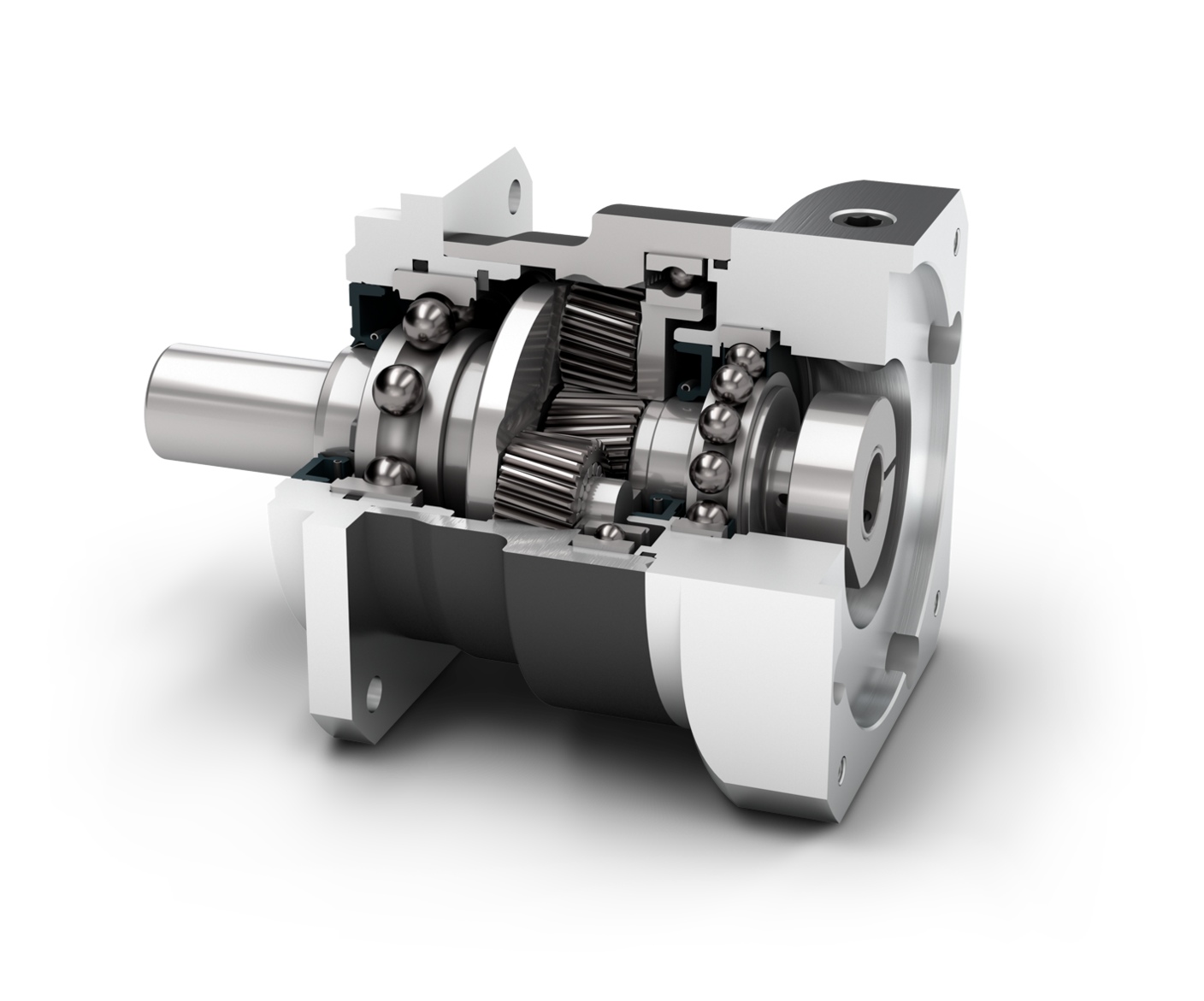

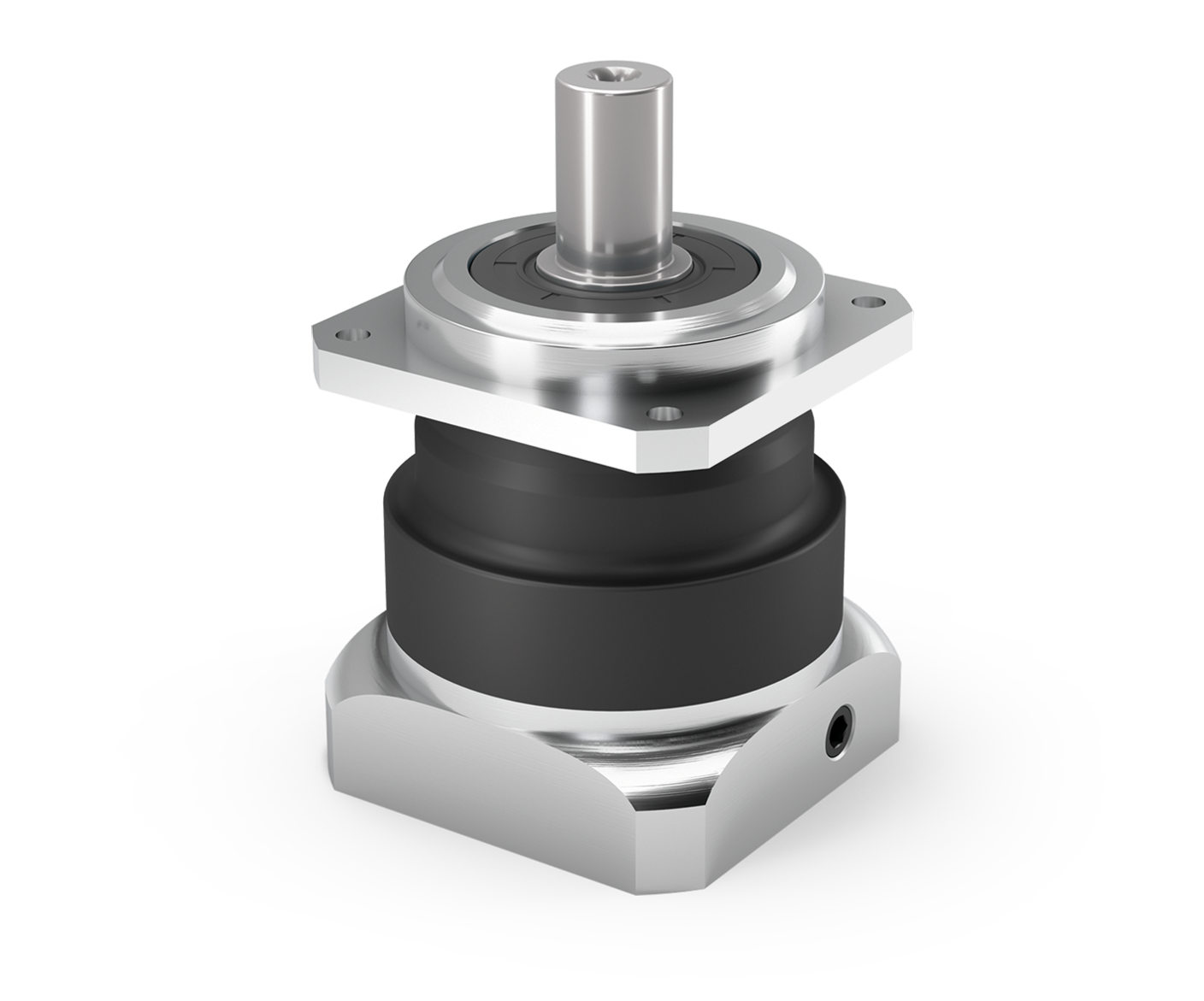

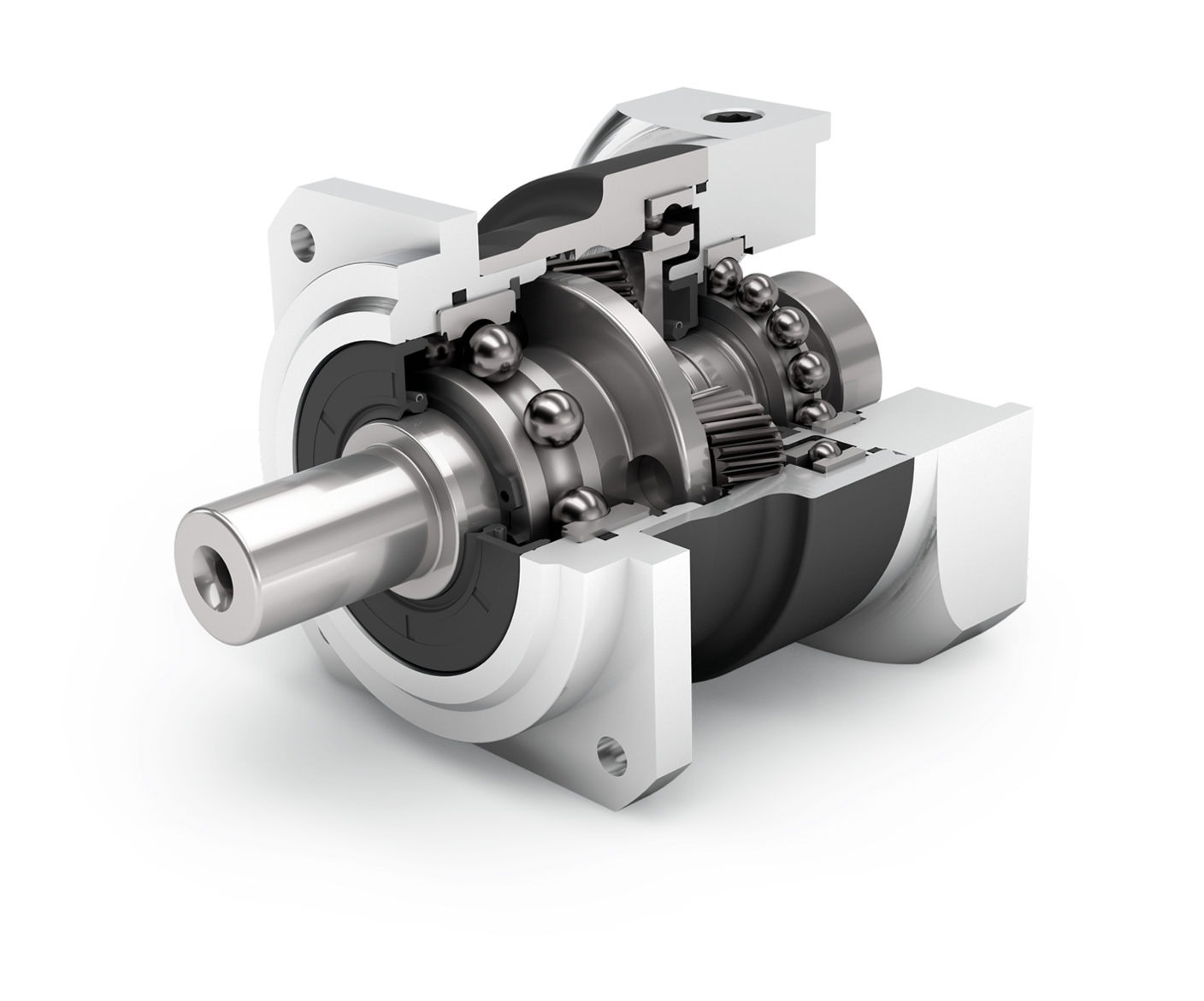

PSBN gearbox
PSBN gearbox
PSBN gearbox
PSBN gearbox rotation

Our PSBN is the ideal combination of a precision planetary gearbox and efficient bearing technology. It was designed specifically to achieve maximum performance at high speed. Thanks to the helical gearing, it operates particularly smoothly - and is quieter than average.

Features

  • Precision Line
  • Coaxial gearbox
  • Helical gear
  • Reinforced deep groove ball bearings
  • Rotary shaft seal
  • Square type output flange
  • Equidirectional rotation
  • Planet carrier in cage design

Further Information

PSBN 055 PSBN 070 PSBN 090 PSBN 115 PSBN 142 Stage
Ratios 3, 4, 5, 7, 8, 10 3, 4, 5, 7, 8, 10 1
12, 15, 16, 20, 25, 35, 40, 50, 70, 100 12, 15, 16, 20, 25, 35, 40, 50, 70, 100 2
Efficiency at full load η % % 96 - 98 96 - 98
Min. operating temperature / Max. operating temperature Tmin / Tmax °C °F -25 / 90 -13 / 194
Protection class IP65 IP65
Standard backlash jt arcmin arcmin <6 - <8 <6 - <8 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5 <3 - <5
Reduced backlash jt arcmin arcmin <4 - <6 <4 - <6 <2 <2 <1 <1 <1 <1 <1 <1
Torsional stiffness cg Nm /arcmin lbf.in/arcmin 1.4 - 2.0 12 - 18 4.1 - 5.1 36 - 45 9.3 - 12.8 82 - 113 22.5 - 33.0 199 - 292 57.5 - 73.0 509 - 646
Gearbox weight mG kg lbm 0.8 - 1.1 1.7 - 2.5 1.4 - 2.1 3.0 - 4.6 2.7 - 3.4 6.0 - 7.4 5.4 - 6.7 11.8 - 14.7 13.2 - 15.2 29.0 - 33.5
Running noise Qg dB(A) dB(A) 56 56 57 57 58 58 63 63 66 66
PSBN 055 PSBN 070 PSBN 090 PSBN 115 PSBN 142
Radial force for 20,000 h / Radial force for 30,000 h Fr 20.000 h / Fr 30.000 h N lbf 560 - 640 126 - 144 850 - 1000 191 - 225 1700 - 1900 382 - 427 2000 - 2300 450 - 517 3700 - 5800 832 - 1304
Axial force for 20,000 h / Axial force for 30,000 h Fa 20.000 h / Fa 30.000 h N lbf 900 - 1100 202 - 247 1300 - 1500 292 - 337 2500 - 3000 562 - 674 3700 - 4400 832 - 989 7700 - 9400 1731 - 2113
Tilting moment for 20,000 h MK 20.000 h Nm lbf.in 33 288 68 601 154 1362 226 2001 581 - 811 5143 - 7179
PSBN 055 PSBN 070 PSBN 090 PSBN 115 PSBN 142
Mass moment of inertia J kgcm2 lbf.in.s210-4 0.096 - 0.133 0.850 - 1.177 0.123 - 0.260 1.089 - 2.301 0.124 - 0.785 1.097 - 6.948 0.321 - 2.650 2.841 - 23.454 0.841 - 14.440 7.443 - 127.805
PSBN 055 PSBN 070 PSBN 090 PSBN 115 PSBN 142 Stage
Nominal output torque T2N Nm lbf.in 11 - 18 97 - 159 28 - 40 248 - 354 54 - 80 478 - 708 135 - 180 1195 - 1593 305 - 470 2699 - 4160 1
14 - 18 119 - 159 28 - 40 248 - 354 54 - 80 478 - 708 135 - 180 1195 - 1593 305 - 470 2699 - 4160 2
Max. output torque T2max Nm lbf.in 18 - 29 159 - 257 45 - 64 398 - 566 86 - 128 761 - 1133 216 - 288 1912 - 2549 488 - 752 4319 - 6656 1
22 - 29 195 - 257 45 - 64 398 - 566 86 - 128 761 - 1133 216 - 288 1912 - 2549 488 - 752 4319 - 6656 2
Emergency stop torque T2Stop Nm lbf.in 24 - 48 212 - 425 80 - 130 708 - 1151 175 - 280 1549 - 2478 340 - 650 3009 - 5753 600 - 1650 5310 - 14604 1
24 - 48 212 - 425 80 - 150 708 - 1328 175 - 300 1549 - 2655 340 - 650 3009 - 5753 600 - 1650 5310 - 14604 2
PSBN 055 PSBN 070 PSBN 090 PSBN 115 PSBN 142
Average thermal input speed at T2N and S1 n1N min-1 rpm 4250 - 5000 4250 - 5000 3400 - 5000 3400 - 5000 3200 - 5000 3200 - 5000 2700 - 4500 2700 - 4500 1450 - 4000 1450 - 4000
Max. mechanical input speed n1Limit min-1 rpm 10000 10000 14000 14000 10000 - 14000 10000 - 14000 8500 - 10000 8500 - 10000 6500 - 8500 6500 - 8500

Wide diversity of output shafts

  • Output shaft with feather key
  • Smooth output shaft

Backlash

  • Standard backlash
  • Reduced backlash

Lubrication

  • Standard lubrication
  • Food grade lubrication
  • Low temperature lubrication

Optimized clamping systems

  • Inertia-optimized clamping system
  • Clamping system for motor shaft diameter

Input

  • Motor adaptation
PSBN 055 PSBN 070 PSBN 090 PSBN 115 PSBN 142 Stage
Shaft diameter output D3 mm in 13 0.512 16 0.630 22 0.866 32 1.260 40 1.575
Centering diameter output D5 mm in 50 1.969 50 1.969 80 3.150 110 4.331 130 5.118
Flange cross section output Q1 mm in 55 2.165 60 2.362 90 3.543 115 4.528 140 5.512
Total length L1 mm in 93.5 3.681 116.5 4.587 140.5 5.531 182.5 7.185 247.5 9.744 1
117.0 4.606 145.0 5.709 162.5 6.398 204.0 8.032 279.0 10.984 2
Shaft length output L3 mm in 26 1.024 37 1.457 48 1.890 65 2.559 97 3.819

Downloads

Product Catalog: PSBN
Operating Manual
Mounting Instructions: PSBN



Configure your PSBN gearbox here

We have developed the Tec Data Finder (TDF) so that you can configure a PSBN planetary gearbox for your needs with just a few clicks. The TDF will provide you with all relevant data, technical information and CAD models. Matched to your motor's flange, of course.
