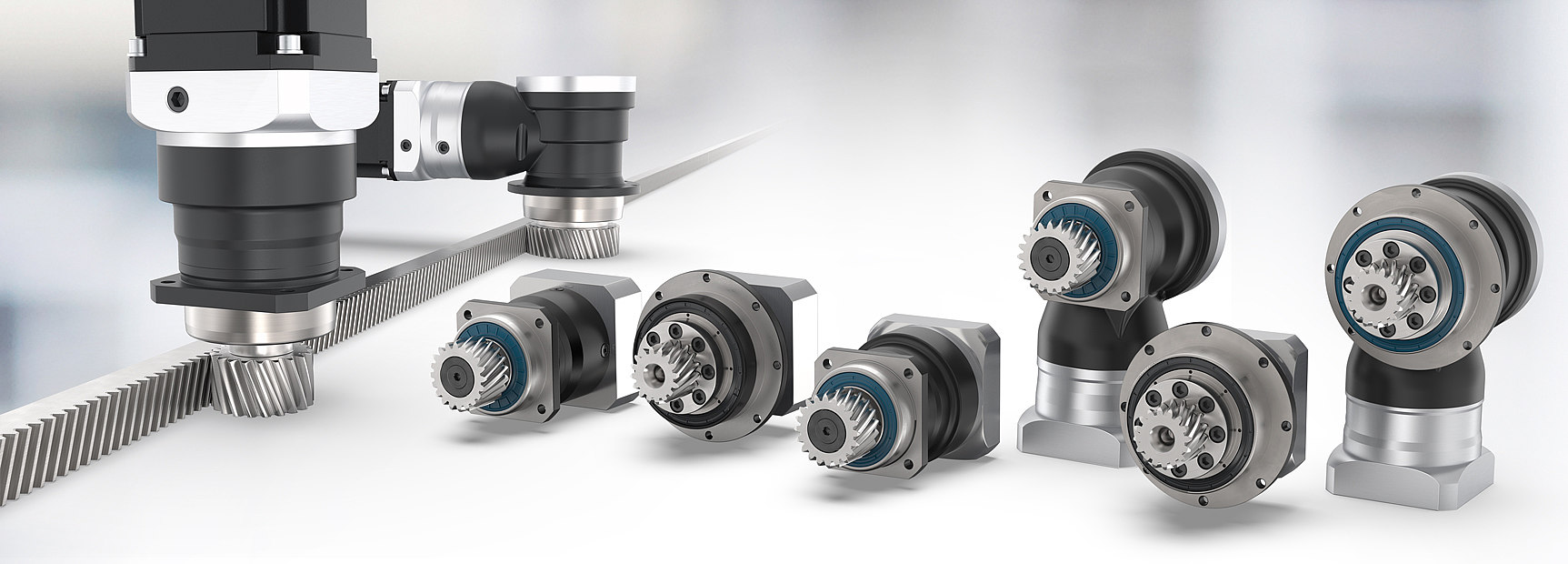

The integrated gearbox/pinion combination provides the best technical coordination for rack and pinion drives. Numerous solution options provide high dynamics and high load-bearing capacities at the same time because of the precision gearing.

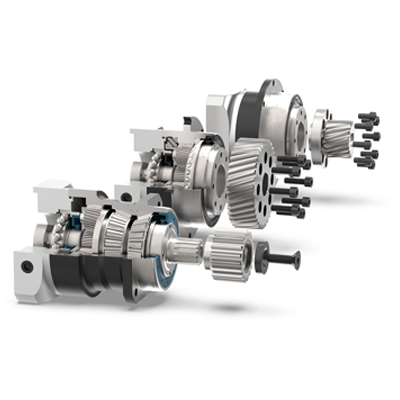

Planetary gearboxes with mounted pinion
A gearbox/pinion combination developed from a single source is the guarantee of ideal technical coordination for your rack and pinion drive.
PK1 pinion
The PK1 pinion is mounted to the splined output shaft of the gearbox, whereby the secure connection that is required is provided by internal teeth in accordance with DIN 5480.
The PK1 pinion for splined output shafts is mounted to the following gearbox series:
PM1 pinion
The PM1 pinion is designed for gearboxes with a flange output shaft, and is equipped with a mechanical interface which is standardized in accordance with ISO 9409-1. Thanks to its large circumference, particularly high feed speeds can be realized.
The PM1 pinion for flange output shafts is mounted to the following gearbox series:
PM2 pinion
The PM2 pinion is designed for gearboxes with a flange output shaft, and is equipped with a mechanical interface which is standardized in accordance with ISO 9409-1. Its small number of teeth allows high feed forces.
The PM2 pinion for flange output shafts is mounted to the following gearbox series:
| Pinion type | Module | Number of teeth | Suitable for gearbox | ||||
|---|---|---|---|---|---|---|---|
| PK1 | 2 | 15 | PSN070 | PLN070 | WPLN070 | PLHE060 | WPLHE060 |
| PK1 | 2 | 16 | |||||
| PK1 | 2 | 18 | |||||
| PK1 | 2 | 18 | PSN090 | PLN090 | WPLN090 | PLHE080 | WPLHE080 |
| PK1 | 2 | 20 | |||||
| PK1 | 2 | 22 | |||||
| PK1 | 2 | 23 | PSN115 | PLN115 | WPLN115 | PLHE120 | WPLHE120 |
| PK1 | 2 | 25 | |||||
| PK1 | 2 | 27 | |||||
| PK1 | 3 | 20 | |||||
| PK1 | 3 | 20 | PSN142 | PLN142 | WPLN142 | ||
| PK1 | 3 | 22 | |||||
| PK1 | 3 | 24 | |||||
| PK1 | 4 | 20 | PSN190 | PLN190 | |||
| Pinion type | Module | Number of teeth | Suitable for gearbox | ||||
|---|---|---|---|---|---|---|---|
| PK1 | 2 | 16 | PSN070 | PLN070 | WPLN070 | PLHE060 | WPLHE060 |
| PK1 | 2 | 19 | PSN090 | PLN090 | WPLN090 | PLHE080 | WPLHE080 |
| PK1 | 3 | 17 | PSN115 | PLN115 | WPLN115 | PLHE120 | WPLHE120 |
| PK1 | 3 | 22 | PSN142 | PLN142 | WPLN142 | ||
| PK1 | 4 | 19 | |||||
| PK1 | 4 | 22 | PSN190 | PLN190 | |||
| PK1 | 5 | 19 | |||||
| Pinion type | Module | Number of teeth | Including adapter flange | Suitable for gearbox | |||
|---|---|---|---|---|---|---|---|
| PM1 | 2 | 26 | - | PSFN064 | PLFN064 | WPSFN064 | PFHE064 |
| PM1 | 2 | 27 | - | ||||
| PM1 | 2 | 26 | 064 -> 090 | PSFN090 | PLFN090 | WPSFN090 | PFHE090 |
| PM1 | 2 | 27 | 064 -> 090 | ||||
| PM1 | 2 | 35 | 064 -> 090 | ||||
| PM1 | 2 | 37 | - | ||||
| PM1 | 2 | 26 | 064 -> 110 | PSFN110 | PLFN110 | WPSFN110 | PFHE110 |
| PM1 | 2 | 27 | 064 -> 110 | ||||
| PM1 | 2 | 35 | 064 -> 110 | ||||
| PM1 | 2 | 40 | - | ||||
| PM1 | 2 | 45 | - | ||||
| PM1 | 2 | 37 | 090 -> 140 | PSFN140 | PLFN140 | WPSFN140 | |
| PM1 | 3 | 31 | 090 -> 140 | ||||
| PM1 | 3 | 35 | - | ||||
| PM1 | 3 | 40 | - | ||||
| PM1 | 4 | 30 | - | ||||
| PM1 | 3 | 35 | 140 -> 200 | PSFN200 | PLFN200 | ||
| PM1 | 3 | 40 | 140 -> 200 | ||||
| PM1 | 4 | 30 | 140 -> 200 | ||||
| Pinion type | Module | Number of teeth | Suitable for gearbox | |||
|---|---|---|---|---|---|---|
| PM2 | 2 | 16 | PSFN090 | PLFN090 | WPSFN090 | PFHE090 |
| PM2 | 2 | 20 | PSFN100 | PLFN110 | WPSFN110 | PFHE110 |
| PM2 | 3 | 14 | ||||
| PM2 | 2 | 20 | PSFN140 | PLFN140 | WPSFN140 | |
| PM2 (1) | 3 | 17 | ||||
| PM2 (1) | 3 | 17 | PSFN200 | PLFN200 | ||
| PM2 (1) | 4 | 20 | ||||
(1) Probably available Q 3/2023 |
| Pinion type | Module | Number of teeth | Suitable for gearbox | ||||
|---|---|---|---|---|---|---|---|
| PM2 | 2 | 17 | PSFN090 | PLFN090 | WPSFN090 | PFHE090 | |
| PM2 | 2 | 22 | PSFN110 | PLFN110 | WPSFN110 | PFHE110 | |
| PM2 (1) | 3 | 19 | PSFN140 | PLFN140 | WPSFN140 | ||
| PM2 (1) | 4 | 22 | PFSN200 | PLFN200 | |||
| PM2 (1) | 5 | 19 | |||||
(1) Probably available Q 3/2023 |
The CAD data can be found in the Tec Data Finder
